FOR SALE

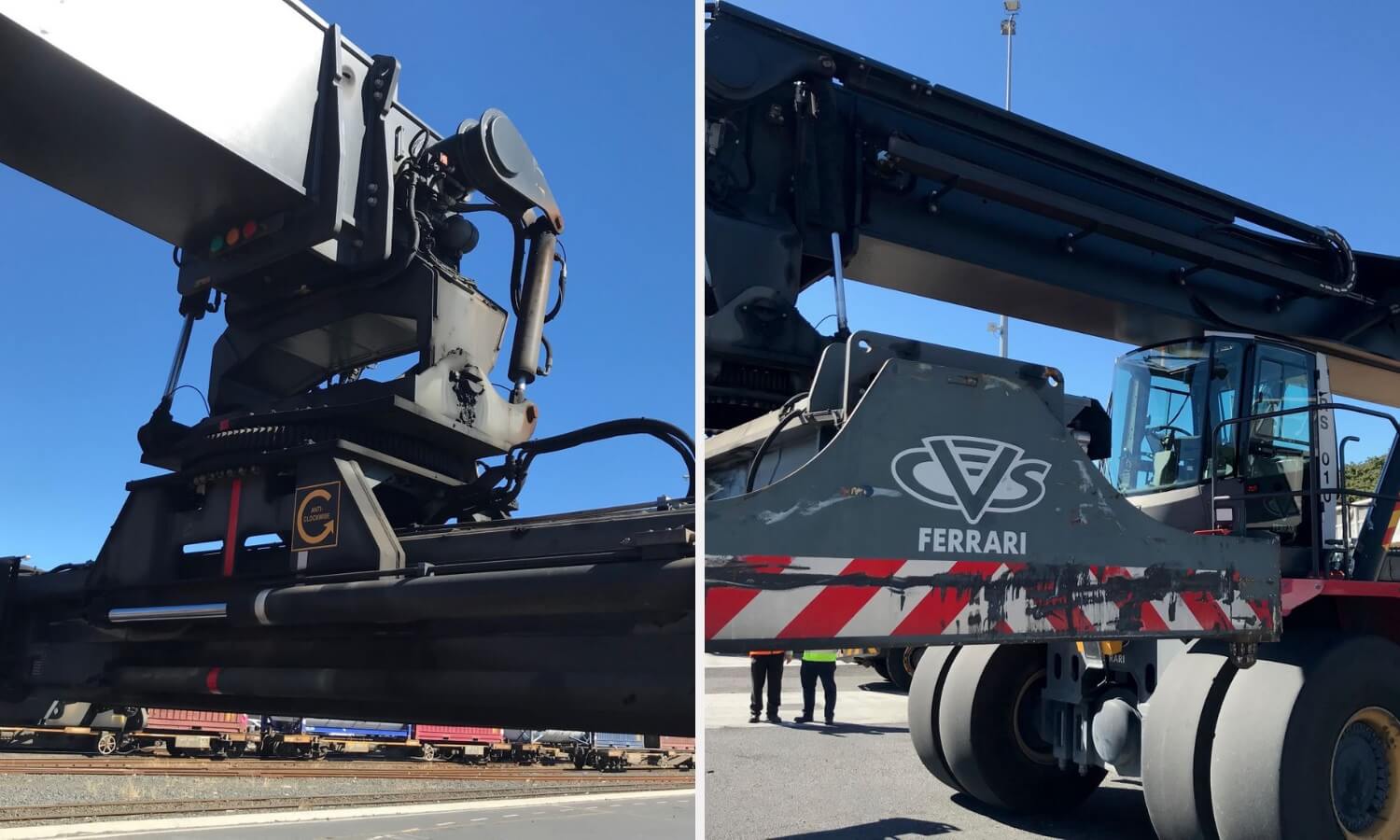

CVS FERRARI F500 RS3

With the Australian Dollar at a 10 year low, and new unit prices skyrocketing this rare opportunity won't last long. The CVS Ferrari range of reach sackers is undeniably superior when it comes to working rate, lifts and ROI. Contact Brett today for a chat and let us show you how this data-driven machine can improve your bottom line



On site Crane

Don't Miss This Opportunity
Contact Us Today

[]
1 Step 1
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
[]
1 Step 1
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right

On site Crane

Don't Miss This Opportunity
Contact Us Today

[]
1 Step 1
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
[]
1 Step 1
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right


FOR SALE

$385 000 Excl


This well maintained unit is for sale due to fleet renewal and expansion. The last hour meter reading was 7559 (31 May 2019). Based on an average of 230 hrs per month then expected hour meter reading at 15/8/19 will be 8134

Contact Us


Image Image

LADEN CONTAINER AND INTERMODAL HANDLING REACH STACKERS

Model   F500.RS3
Attachment type   20’/40′ Top Pick Spreader
Load capacity on tires at 1st/2nd/3rd row (no stab) kg 46.000 | 33.000 | 17.000
Load centre distance at 1st/2nd/3rd row mm 1.780 | 3.850 | 6.400
Load capacity on stabilizers at 1st/2nd/3rd row * kg 46.000 | 40.000 | 23.000
Load centre to front face of the truck mm 830
Lifting height under twist-lock mm 16.100
Stacking Ability – containers   1 over 5 = 6 x 8’6”
Wheelbase mm 6.500
Service weight – unladen kg 73.500
EU Stage 3a Engine make&model (Rated Power) (kw) CUMMINS QSM11 (250)
EU Stage 4 Engine make&model (Rated Power) (kw) SCANIA DC13 (257)
Transmission make&model   DANA TE32
Service Brakes   Wet Disk on front wheels
Tires size   18.00-25
Overall width – excluding Spreader mm 4.185
Overall length – including spreader mm 12.000
Overall height mm 4.800
Seat height mm 2.720
Spreader rotation – clockwise/anticlockwise deg -105 / +195
Spreader side-shift – left / right mm +800 / -800
Boom Angle (min / max) deg 0 /60

∗ optional
